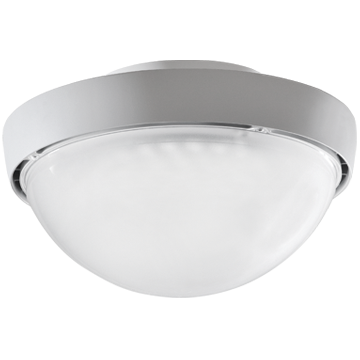

Model #: TD17
Features:
  • Textured tertiary lens for glare reduction and up-light feature to eliminate “cave-effect”
  • Optical patterns designed for covered parking structures
  • Outputs ranging from 5,507 lm to 11,470 lm
  • Compatible with TekLink™ lighting control technology
  • Patented thermal management
  • 10 Year limited product warranty
Application(s):Parking Garage
Parks and Recreation
Multifamily Housing
Stairwells
Schools and Universities
Transportation Platforms
Exteriors and Entryways
Lens Type(s):Textured Acrylic
Textured Polycarbonate
Lamp Type(s):LED
Size(s):17"
Listings:
Where you see this symbol, the Kenall product shown is manufactured in the USA with components purchased from US suppliers, and meets the Buy American requirements under the ARRA. Kenall has not determined the origin of its domestically purchased components or the subcomponents thereof.
Distribution TypesType V-Narrow or V-Square roadway distributions available.  UV-stabilized, high-impact resistant injection-molded clear textured 100% DR acrylic or polycarbonate tertiary lens.
ElectricalServiceable high-brightness LED array.  See Ordering Information for color temperature and CRI options.  70 CRI minimum.  120-277 VAC, 347VAC and 480VAC 50/60Hz single-phase input; constant-current dimming driver; <20% THD, >0.90 PF. Minimum 90% electrical efficiency.  0-10V dimming protocol with 0-100% range, 0.6mA source current.  Replaceable surge suppressor rated to 20kA/kV per IEEE/ANSI C62.41 Cat. A.  EMC compliant with FCC 47 CFR Part 15, Class B. Passes IEC 61000-4-4 EFT and IEC 61000-4-5 (Class 4) surge evaluation.
HousingMarine-grade die-cast aluminum and UV-stabilized polycarbonate construction.  Standard TGIC polyester power coat finish on aluminum components with five-step pre-treatment to withstand 1,000 hour salt spray test per ASTM B117.  See Ordering Information for available finishes. Closed-cell silicone gasketing seals all housing component interfaces.  Die-cut closed-cell neoprene self-adhesive gasket seals housing to mounting surface (DTS).
ListingsLuminaire is certified to UL Standards by Intertek Testing Laboratory for Wet Location.  IP65 rating per IEC 60598.  Suitable for installation into -40°C to 40°C ambient environments, unless otherwise noted. Product listed on DesignLights Consortium® Qualified Product List. Check the latest version here for listed configuration details.
Lumen DataTD17 Lumen Data

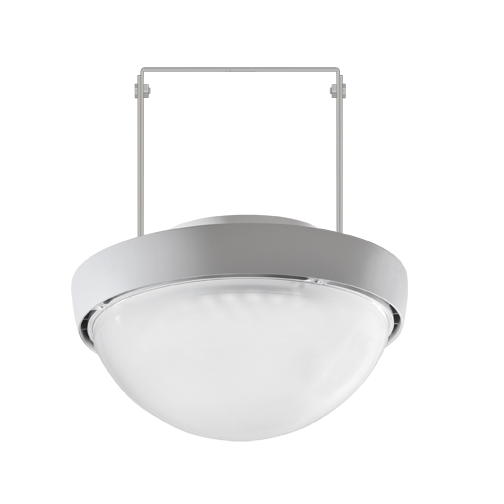

MountingDirect-to-surface (DTS) mounting over recessed junction box, Trunnion Mount (TK) or pendant-mounted (PM) via ¾" rigid sealed conduit.  See Ordering Information for selection. Housing access secured via tamper-resistant Torx™ fasteners.
PatentMultiple U.S. Patents issued and pending.
PhotometricsPhotometry tested to the IESNA LM-79-08 standard by an ILAC/ISO17025 accredited laboratory.  For photometric data, please go to www.kenall.com.
TekLink TL1000/2000An adaptive lighting control system with wired or wireless communication between system nodes.  In addition to occupancy detection and daylight harvesting, TL1000 and TL2000 feature advanced scheduling and energy management capabilities with cloud-based management of system settings, reporting and notifications.  Meets CA Title 24-2013 and ASHRAE 90.1-2013 requirements.
TekLink TL50An independent lighting control system integral to the luminaire, featuring its own occupancy sensor, daylight harvesting and adjustable time-out/dimming settings.
WarrantyLimited ten (10) year warranty.  Peace of Mind Guarantee™ when ordered and installed with direct-to-surface (DTS) mounting and polycarbonate lens (TP).
Specifications are subject to change without notice. Please consult your Kenall Customer Service for help with special requests at (800) 4 Kenall.
Product Documentation
NameDownloadSize
TD17 Specification SheetDownload914.6 KB
TD17 LEL Battery InformationDownload426 KB
Photometry (IES)
NameDownloadSize
Master IES File (All Kenall IES files)Download14,315.9 KB
TD17 IES FileDownload298.3 KB
REVIT Files
NameDownloadSize
Master Revit File (All Kenall Revit files)Download259,003.8 KB
TD17 Revit FileDownload1,190.2 KB
Additional Resources
NameDownloadSize
LED Lighting Product Selection GuideDownload20,187.9 KB
TekDek™ Advance Lighting for Parking GaragesDownload4,756.3 KB
TekDek™ Case StudyDownload588.1 KB
TekDek Case Study - Dalziel GarageDownload325.3 KB
TD17 Lighting Facts LabelDownload14,577.2 KB
TekDek™ Lighting Layout Request FormDownload189 KB
Installation Files
NameDownloadSize
TD17 Installation SheetDownload1,126 KB
Images
NameDownloadSize
TD17 Main ImageDownload35.2 KB

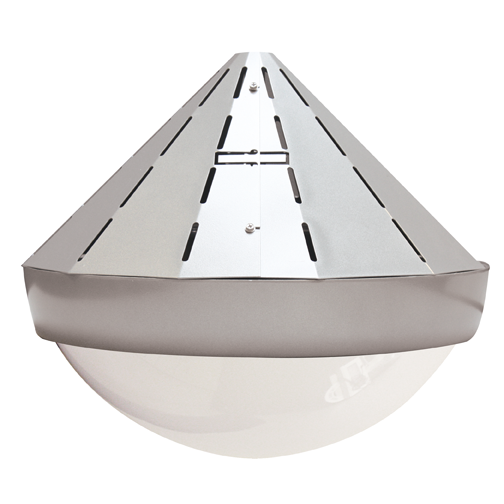

TD17 Bird GuardDownload162.1 KB

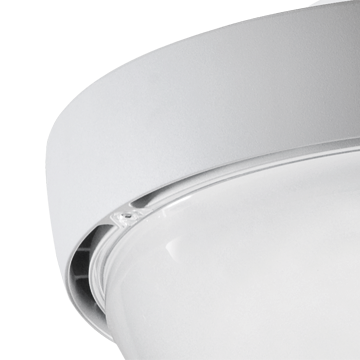

TD17 Heat SinkDownload116.1 KB

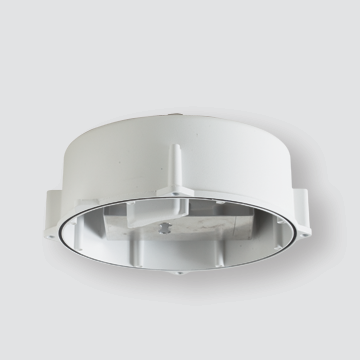

TD17 HousingDownload46.7 KB
